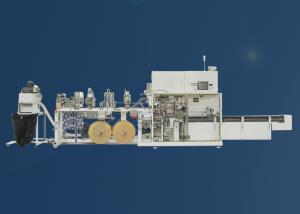

Full Servo Sanitary Pads Packaging Machine With Side Gussets

Brand Name : JSX

Model Number : QB-100

Certification : CE/ISO

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 10pcs/month

Delivery Time : 90-120days

Packaging Details : Standard package

Item : Sanitary napkins packing machine

Speed : 50-55

Products : Fluff/Ultra sanitary napkin

Product type : Straight/Tri-folded

Running type : Full servo motor

Bag type : With side gussests

Contact Now

Full servo sanitary napkin packing machine, 50-55 packs/min, With side gussets

Description:

JSX QB-100 is a high efficient sanitary napkin packing machine. From bag making part to discharge part, it is driven by full servo motors and it can run at 50-55 packs/min. This machine can be designed to produce various sanitary napkins, such as straight and tri-folded pads. The package of the products can have a neat sealing edge. Besides, different products can be saved in HMI, it's easy for the worker to produce another product by just 'one key' switch. This is one of our best selling packing machines.

Characteristic:

1. Reduce packaging and management cost, improve efficiency

2. Full servo motor control make machine user-friendly

3. Sensor limit protects all machine movement

4. Trim suction function, environmental friendly

5. Accurate mold design guarantee the good sealing

Specification:

Item	QB-100
Package Speed	55-60 bag/min
Bag Material	PE/ Aluminum film, complex film
Bag Process	Roll type of tube bag
Package Range	L(80-130)W(30-90)H(80-200)mm
Machine Dimension	L(6000)W(950)H(2000)mm
Weight	1200KG
Power Supply	3 Phase,380V+N+PE, ±5%,50HZ
Capacity	25KW
Air Consumption	0.5 m³/min
Pneumatic	0.6Mpa
Noise	≤80dba

After-sale service:

1. Mold drawing design, meet one machine for different products

2. Process-oriented assembly, make the perfect machine performance

3. Order tracking plan, keep up to date with the latest production process

4. Project upgrade plan, worry-free packaging for future development

JSX Automation, Accompany you to the future.
